  익스펜조인트



HOME  >  익스펜조인트  >  단식형

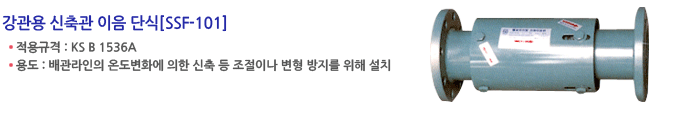

단식형(Single Type)


MODEL NO. DIMENSION AXIAL MOVEMENT
TYPE PRESS. N.D. L(mm) D(mm) EXT.(mm) COMP.(mm)
SSF-SS 10K 20A 365 54 10 30
SSF-SS 10K 25A 365 54 10 30
SSF-SS 10K 32A 365 60.5 10 30
SSF-SS 10K 40A 365 70 10 30
SSF-SS 10K 50A 365 90 10 30
SSF-SS 10K 65A 415 102 10 30
SSF-SS 10K 80A 415 130 10 30
SSF-SS 10K 100A 415 155 10 30
SSF-SS 10K 125A 440 190 10 30
SSF-SS 10K 150A 440 228 10 30
SSF-SS 10K 200A 440 318.5 10 30
SSF-SS 10K 250A 465 355.6 10 30
SSF-SS 10K 300A 465 457.2 10 30
SSF-SS 10K 350A 465 457.2 10 30
SSF-SS 10K 400A 490 508 10 30
SSF-SS 10K 450A 490 558.8 10 30
SSF-SS 10K 500A 490 609.6 10 30

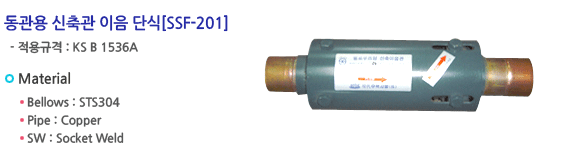

MODEL NO. CONNE- CTION DIMENSION AXIAL MOVEMENT
TYPE PRESS. SIZE D(mm) EXT.(mm) COMP.(mm)
SSF-CUS 10S 20A SW 365 10 30
SSF-CUS 10S 25A SW 365 10 30
SSF-CUS 10S 32A SW 365 10 30
SSF-CUS 10S 40A SW 365 10 30
SSF-CUS 10S 50A SW 365 10 30
SSF-CUS 10S 65A SW 415 10 30
SSF-CUS 10S 80A SW 415 10 30
SSF-CUS 10S 100A SW 415 10 30
SSF-CUS 10S 125A SW 415 10 30
