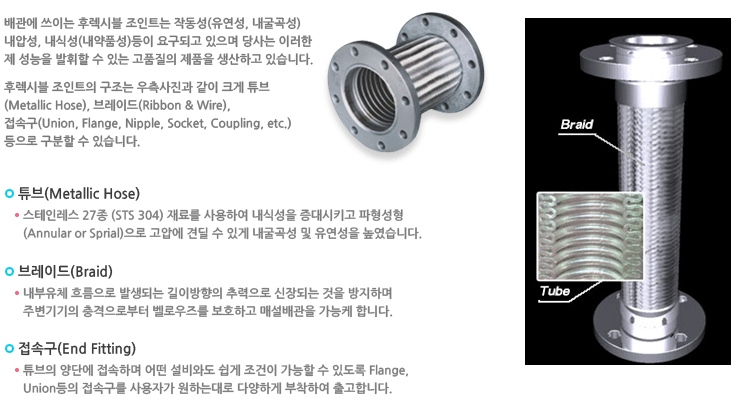

BELLOWS


Nominal diameter
[mm] 		Diameter
[mm]		 Radius of curvature
[mm]		 Wight[kg/m] Burst Pressure [kgf/cmG]
[BRAID부착]
I.D O.D WALL
THICKNESS		 MINIMUM
BEND		 REPEATED
BEND		 TUBE BRAID Working
Pressure 		Test
Pressure 		BUST
Pressure

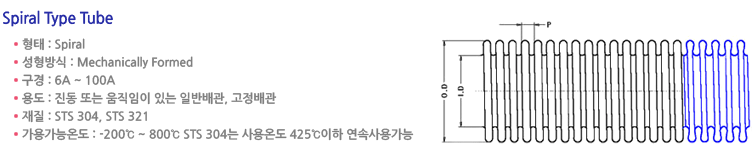

FL08-S 9.8 13.0 0.20 20 80 0.13 0.09 145 328 581
FL10-S 10.3 15.0 0.25 25 95 0.20 0.11 89 133 357
FL15-S 13.1 18.2 0.25 30 130 0.23 0.17 71 107 286
FL20-S 20.5 32.5 0.25 30 160 0.30 0.24 51 76 204
FL25-S 25.9 32.9 0.25 40 190 0.55 0.30 40 61 163
FL32-S 34.0 48.5 0.30 50 240 0.78 0.48 35 53 143
FL40-S 40.5 48.5 0.30 75 290 1.13 0.60 28 42 112
FL50-S 53.0 61.7 0.30 95 340 1.45 0.78 25 38 102
FL65-S 65.5 76.7 0.40 130 395 1.88 1.23 17 26 71
FS80-S 76.0 90.0 0.40 225 440 2.50 1.16 14 22 59
FL100-S 97.1 110.0 0.40 200 480 3.60 1.97 12 18 49

Nominal Diameter [mm] diameter(mm) Radius of curvature [mm] Weight [kg/m] Burst Pressure [kgf/cmG] [BRAID부착]
I.D O.D P WALL THICKNESS TUBE BRAID

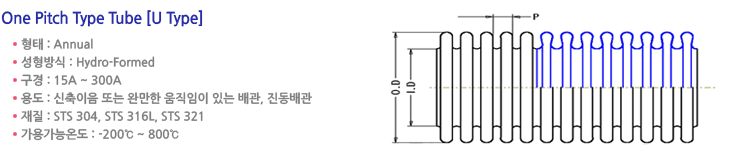

FL20-U 20.0 27.0 7.0 0.25 170 0.27 0.24 173
FL25-U 25.0 34.1 8.0 0.30 170 0.30 0.30 163
FL32-U 32.0 43.5 10.0 0.30 180 0.40 0.48 153
FL40-U 40.0 52.5 11.5 0.30 200 0.59 0.48 132
FL50-U 45.0 63.5 12.5 0.30 225 0.75 0.60 112
FL65-U 65.0 82.0 12.5 0.30 250 0.98 0.78 92
FL80-U 77.0 94.0 13.0 0.40 275 1.54 1.23 66
FL100-U 101.0 119.5 15.0 0.40 350 2.02 1.61 56
FL125-U 124.0 145.0 15.5 0.40 425 2.47 1.97 41
FL150-U 149.0 172.0 17.0 0.40 500 2.97 2.38 36
FL200-U 200.0 228.0 21.0 0.50 750 4.98 3.98 32
FL250-U 254.0 285.8 24.0 0.50 900 6.34 5.07 28
FL300-U 300.0 334.0 25.0 0.60 1,200 8.99 7.19 20
