  익스펜조인트



HOME  >  익스펜조인트  >  복식형

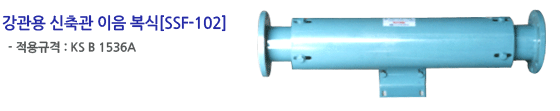

복식형(Dual Type)


MODEL NO. DIMENSION AXIAL MOVEMENT
TYPE PRESS. N.D. L(mm) D(mm) H(mm) EXT.(mm) COMP.(mm)
SSF-SD 10K 20A 680 54 100 20 60
SSF-SD 10K 25A 680 54 100 20 60
SSF-SD 10K 32A 680 60.5 120 20 60
SSF-SD 10K 40A 680 70 120 20 60
SSF-SD 10K 50A 680 90 130 20 60
SSF-SD 10K 65A 780 102 140 20 60
SSF-SD 10K 80A 780 130 150 20 60
SSF-SD 10K 100A 880 155 170 20 60
SSF-SD 10K 125A 880 190 200 20 60
SSF-SD 10K 150A 930 228 220 20 60
SSF-SD 10K 200A 930 318.5 250 20 60
SSF-SD 10K 250A 980 355.6 300 20 60
SSF-SD 10K 300A 980 457.2 350 20 60
SSF-SD 10K 350A 1030 457.2 450 20 60
SSF-SD 10K 400A 1030 508 500 20 60
SSF-SD 10K 450A 1080 558.8 550 20 60
SSF-SD 10K 500A 1080 609.6 600 20 60

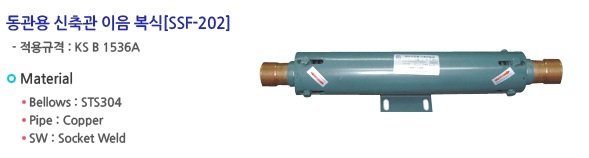

MODEL NO. CONNE- CTION DIMENSION AXIAL MOVEMENT
TYPE PRESS. N.D. L(mm) D(mm) EXT.(mm) COMP.(mm)
SSF-CUD 10S 20A SW 680 100 20 60
SSF-CUD 10S 25A SW 680 100 20 60
SSF-CUD 10S 32A SW 680 120 20 60
SSF-CUD 10S 40A SW 680 120 20 60
SSF-CUD 10S 50A SW 680 130 20 60
SSF-CUD 10S 65A SW 780 140 20 60
SSF-CUD 10S 80A SW 780 150 20 60
SSF-CUD 10S 100A SW 880 170 20 60
SSF-CUD 10S 125A SW 880 200 20 60
